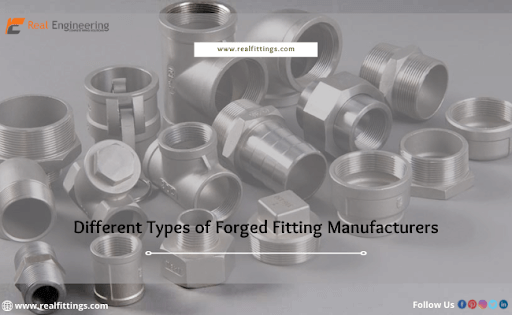

Different Types of Forged Fitting Manufacturers

0

Forged fittings manufacturers in India were also steel fittings that have been forged. The following steps are involved in the production of forged steel fittings: cutting and heaters billets, applying pressure to heat source billets under passes away to shape them, trimming, and shot blowing. The blank fittings were then computer forged for net required dimension.

Forged steel fittings are accessible in screws and connector weld end interconnection, depending on their application. The dimensions of connection weld forged steel fittings are in accordance with ASME B16.11, while threaded forged fittings manufacturers in India are in accordance with Astm standard (American Society of Professional Engineers) B1.20.1.

Because most forged steel fittings are small, closed die forging is commonly used to generate forged steel fittings. Die close Forging is a ductile materials procedure in which the substance is fluidized between shuttered dies, as opposed to open die forging.

Close die forging (also known as hot drop trying to forge) can accomplish more intricate parts that are very near to the aspects of the completed element when compared to other approaches die forging.

The deformations is delivered quickly via a series of shots that compel the content to enter the shape of the mold. Without any transitional  basically, the process is carried out at the foam temperature results in use.

Different Types of Forged Fittings Manufacturers in India

1. Tees

Tees are forged steel fittings that are used to merge or divide procedure. Tees also permit for changes in pipe size. The tee’s run channels are the 2 different in-line outlets, and the offshoot is the quarter. In a lowering tee, the department news source is the lowering outlet.

2. Elbows

A pipe elbow is a forged steel fitting that is placed among two strings of pipe or tube to allow for a shift in direction, typically in the 90° or 45° direction. Reducing elbows, like limiting tees, exist to concurrently change fluid flow and decrease flow radius.

Street Elbows get one female closure that accepts pipe and also another male finished thread it’s the same length as the pipe, allowing them to be installed without a pipe breast.

3. Couplings

Couplers are forged steel fittings that are used to twisted pair lengths of pipe. Half-couplings are screwed out on to the piping system, while another end is designed to be tightly implanted, or fused, onto another end of the cable or vessel.

Female strands or open sockets are present on both ends of basic couplers, whereas lowering couplings link smaller pipelines to bigger ones.

4. Unions

Unions are forged steel fittings that, like couplings, allow for easy disassociation and ability to connect; they are made up of three parts: a loony, a female finished, and a men end. They enable the assembly and detachment of two lengths of pipe without having caused any deflections to the pipelines.

5. Bushing

Bushings as well as lowering inserts were also Forged fittings manufacturers in India that enable for a transformation in tube diameter. The most frequently used hex face bushing is shown here.

6. Plug

Plugs, like caps, are forged steel fittings that also are implanted into the top of the tube and appear in a range of head types, such as hex, cube, with round.

7. Cross

Crosses are forged steel fittings with one inlet but also three outlets or conversely. Those are known as four-way tees.

  • Stainless Steel

That’s one of the ideal components for forged fittings. Stainless steel is available in a variety of standards, including ASTM, ASME A  stainless steel grades All of these grades are appropriate for forging. Furthermore, these grades make forged fittings ideal for use in all complicated and overall applications across a wide variety of industries.

  • Super Dulex Steel

This substance is also favoured for the forging process, which is used to create a selection of items. Duplex as well as super duplex steel grades.  All of these grades are accessible in standards such as ASTM as well as ASME A.

  • Carbon Steel

Carbon steel is a common material for forged fittings. This metal is available in various of standards, including ASTM. Carbon steel grades make forged fittings sturdy and long-lasting for a range of industries.

  • Brass

Brass is being used in the production of forged fittings. This material comes in a variety of grades, including Brass. All of these grade levels seem to be widely accessible on the market, allowing forged fittings to be used in a variety of industrial areas.

  • Nickel Alloy

Forged fittings are made from nickel alloy, which is accessible in ASTM,   are all grades of nickel alloy (Nickel 201). Every one of these grade levels are suitable for forged fittings and can withstand a certain load capacity in industrial uses.

Forged Fittings are typically used to transfer pipes, valves, pipes, and a variety of other items of hardware. These fittings are primarily of two types: tensioned fittings, that also screw a pipe to fittings, as well as socket weld fittings, that also link up a pipe to fillet welds. Forged fittings are widely comes in a multitude of materials as well as test scores.
